Mechanical Indicators

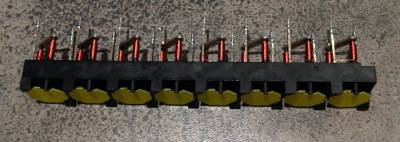

8 Segments

1

2

3

4

x

x

7

x

- X's are open

18 Ohm resistance per coil
