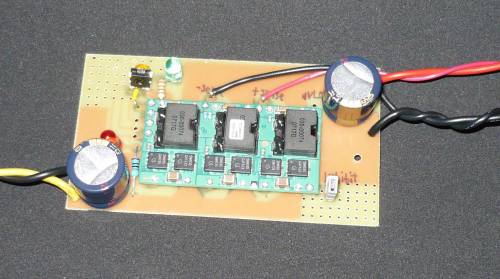

50 Amp 5 Volt Power Supply

Need a 208.76 ohm, 1% resistor to set the 5V output. Right now I'm using a 500 ohm potentiometer. 200 ohms would output 5.02V.

pth12040w.pdf
